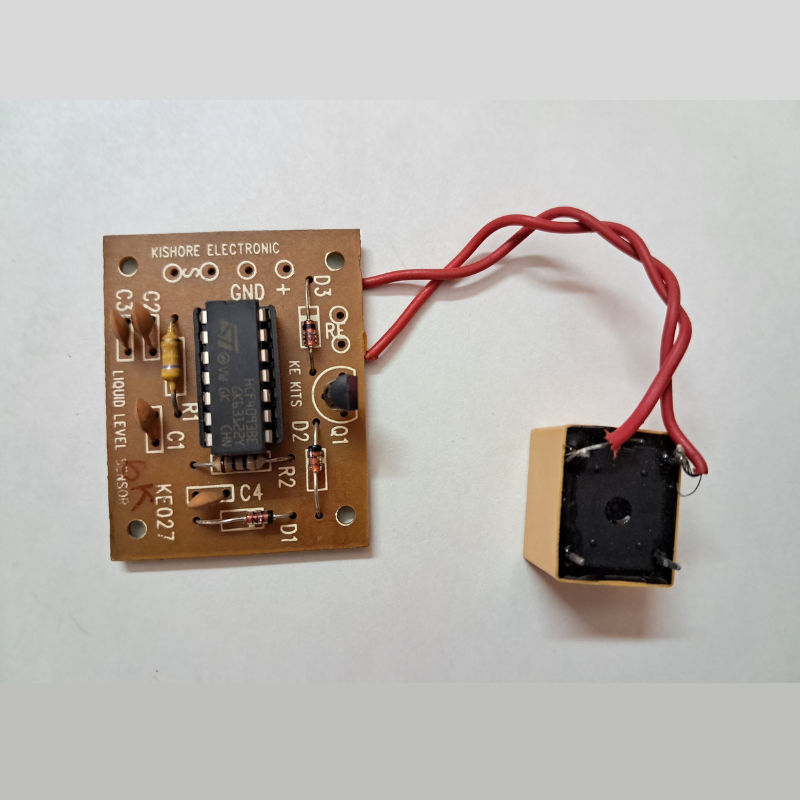

Liquid Level Sensor

A Liquid Level Sensor electronic project can be a great learning experience for engineering students.

It involves building a device that can detect and measure the level of liquid in a container. Here are some steps that engineering students can follow to build a liquid-level sensor:

1. Determine the specifications of the liquid level sensor: Decide on the desired range of liquid level to be measured and the accuracy needed.
2. Select the type of sensor: There are several types of sensors that can be used to measure liquid level, such as ultrasonic sensors, pressure sensors, and capacitive sensors. Choose a sensor that is appropriate for the desired range of liquid level and accuracy needed.
3. Select the microcontroller and display: The microcontroller is the brain of the liquid level sensor and controls the measurement and display of the liquid level. Choose a microcontroller that is compatible with the chosen sensor and can communicate with the chosen display.
4. Build the mechanical structure: Design and build a mechanical structure that holds the sensor and positions it in the container to measure the liquid level.
5. Connect the sensor to the microcontroller: Follow the manufacturer’s instructions for connecting the sensor to the microcontroller.
6. Program the microcontroller: Write code to read the sensor data and display the liquid level on the chosen display.
7. Test the liquid level sensor: Test the liquid level sensor with various levels of liquid to ensure that it accurately measures the liquid level.

Engineering students can also consider adding additional features to their liquid level sensor, such as an alarm to indicate when the liquid level is too high or too low, or wireless connectivity to transmit the data to a remote location.
