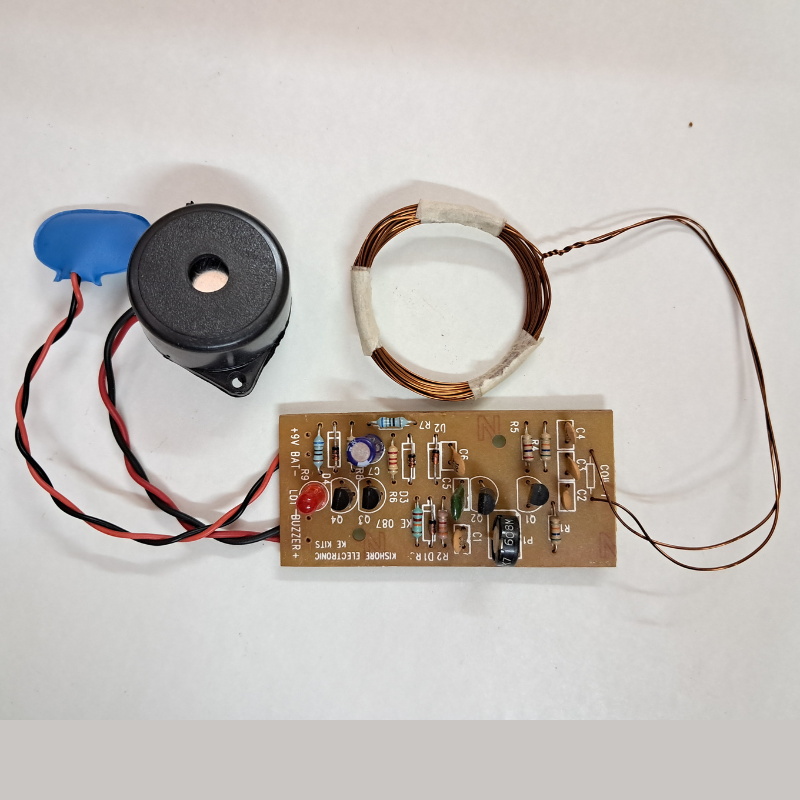

Metal Detector

If you’re interested in building a metal detector electronic project, here are some basic steps you can follow:

1. Gather your materials: You’ll need a power source (such as a battery), a search coil (to create the electromagnetic field), a metal detector circuit (to detect changes in the electromagnetic field), and a control circuit (to adjust the sensitivity and other settings).
2. Build the search coil: This is the part of the metal detector that creates the electromagnetic field. It typically consists of a wire coil wrapped around a non-metallic core. The size and shape of the coil will depend on the type of metal detector you’re building and the range you want to achieve.
3. Build the metal detector circuit: This is the part of the metal detector that detects changes in the electromagnetic field. There are many different metal detector circuit designs you could use, ranging from simple to complex. One common option is to use a “beat frequency oscillator” (BFO) circuit, which compares the frequency of the oscillator to the frequency of the reflected signal to detect metal objects.
4. Build the control circuit: This is the part of the metal detector that allows you to adjust the sensitivity and other settings. Depending on the type of metal detector circuit you’re using, you may need to add additional components (such as potentiometers) to adjust the settings.
5. Test and adjust: Once your metal detector is built, it’s important to test it in a safe and legal environment. Use metal objects of different types and sizes to test the detector’s sensitivity and adjust the settings as needed.

Please note that building a metal detector can be a complex and time-consuming project, and it may require some background knowledge in electronics and circuit design.
